AirGap 1000/6

For ordering:

Send an e-mail to info@radonett.se

Please specify the product you are interested in and your contact information, including: Delivery and invoice information

Product leaflet
Product specification

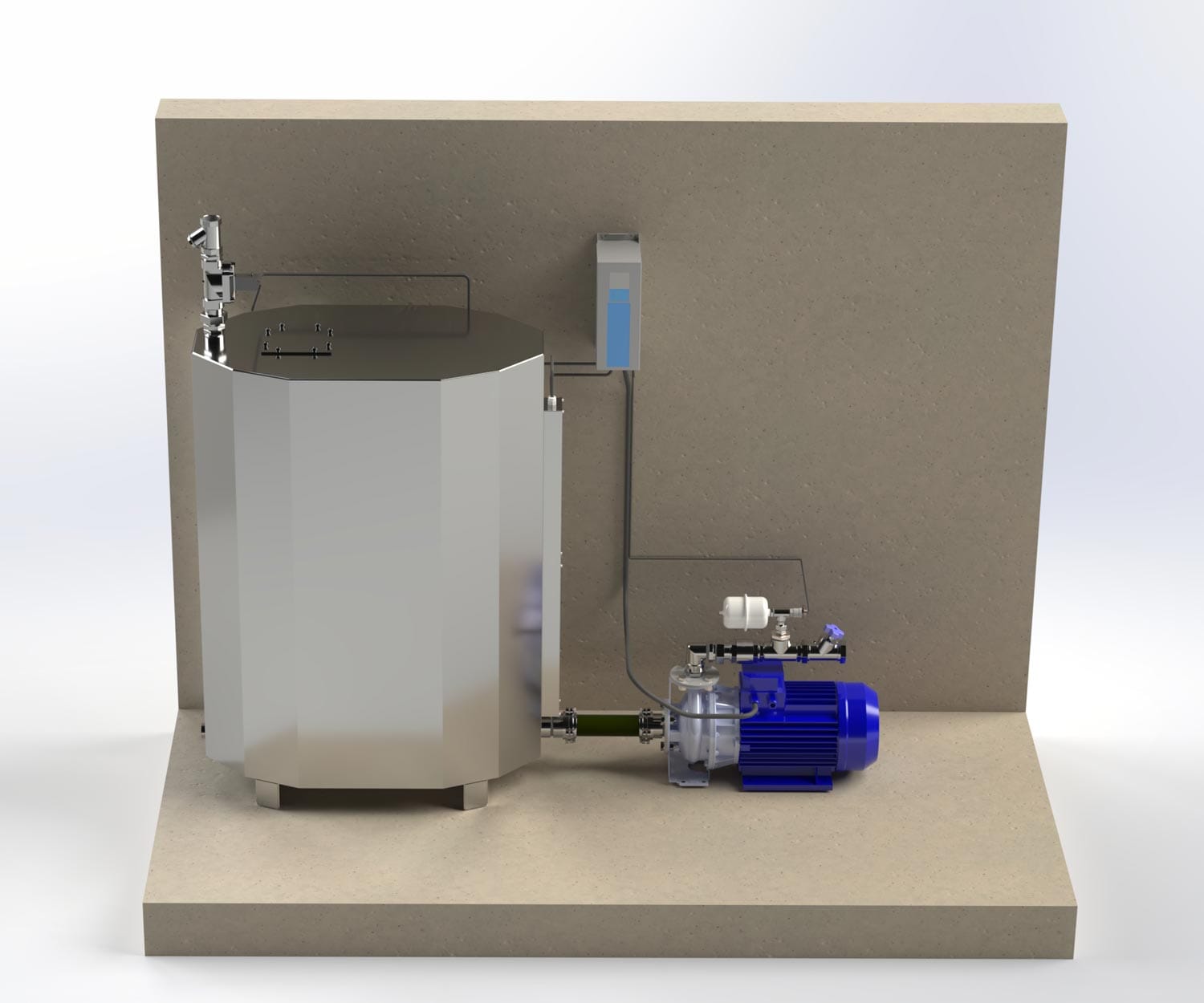

AirGap 1000/6 backflow preventer category 5 type AB is type approved according to SS-EN 1717. Installation is quick and easy. It can be placed on the floor and uses a minimal amount of space.

Radonett AirGap 1000/6 is delivered complete and factory tested. 3-phase pump with pre-assembled soft-closing solenoid valve, pressure sensor, and frequency control of the pump.

  • Arbetstryck: 1 000 l/min vid 6 Bar
  • Max pressure out: 7,2 Bar
  • Maximum outlet flow: 1200 l/min
  • Weight (empty): 140 kg
  • Height: 1600 mm
  • Width: 620 mm
  • Depth: 1250 mm
  • Volume: 800 liter
  • Tank in acid-proof sheet metal: EN 1.4404
  • Water inlet: Bürkert 5282 NC R50 solenoid valve, 2″ internal soft-closing
  • Water outlet: R40 adjustment valve, 1 1/2″ internal
  • Pressure transmitter: Vacon
  • Frequency controll: Vacon
  • Alarm: Overflow and pump alarm
  • Dry running protection: yes
  • Pump:15 kW, (3-phase)
  • Voltage: 3 x 400 V (690 V)
  • Rated current: 30 A
  • Installation: On the floor in premises with floor drain and non-freezing environment.

Contact Radonett for more information and for installation manual
